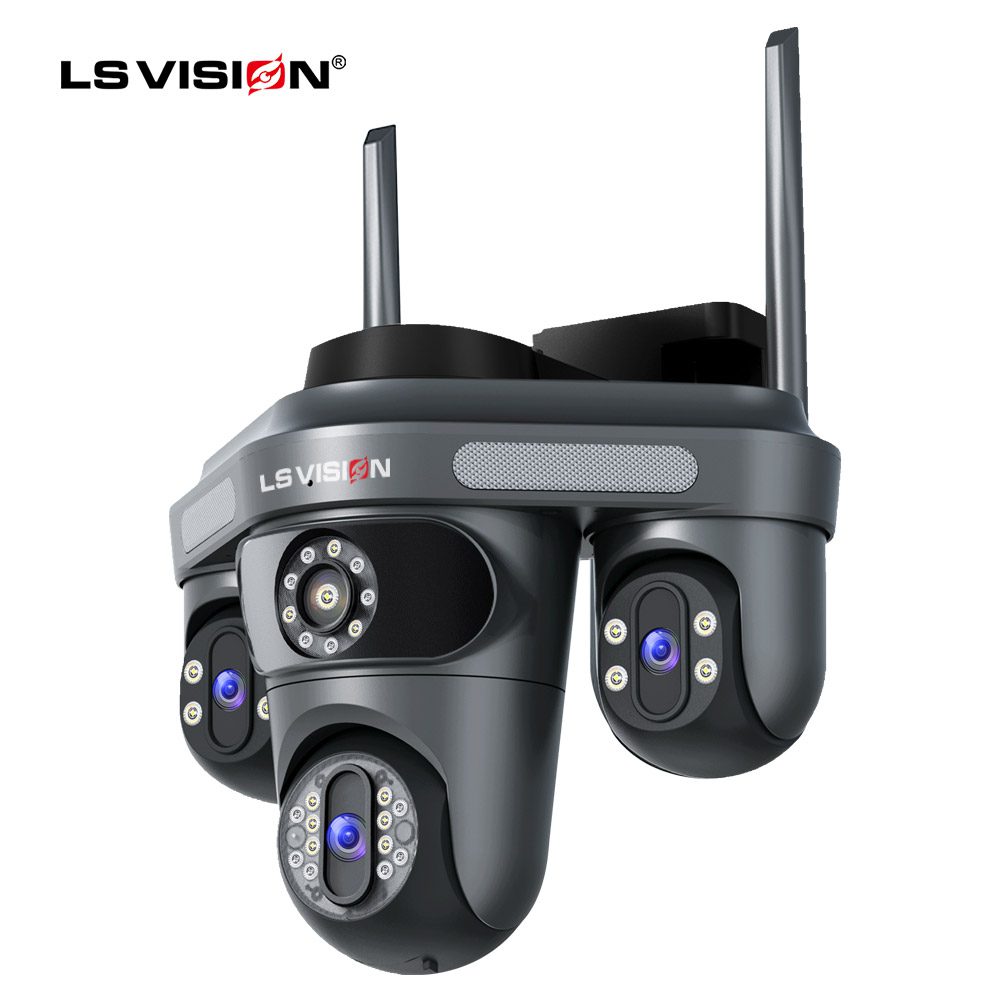

LS VISION 3 Lens High-Quality 360 Degree Outdoor Wired CCTV Camera with 12V DC & Auto Tracking PTZ

LS VISION is a global leader with 15 years of experience in wired CCTV cameras.

Introducing the world’s only 360° PTZ camera with three lenses.

Each lens features independent PTZ control and automatic tracking.

Weight	1.1 公斤
Dimensions	23.0 × 17.0 × 25.5 厘米

Key Features:

2.5 inch 15MP HD PTZ camera;

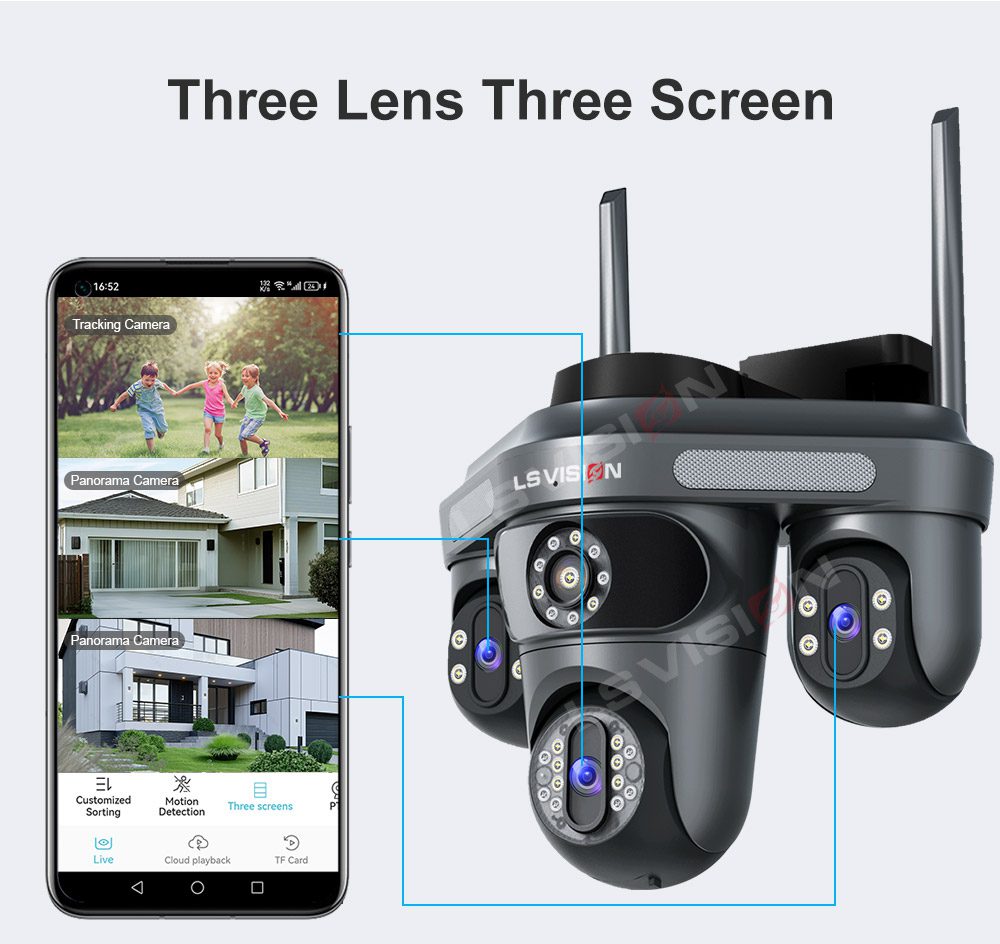

Three-lens three-screen three-PTZ 360-degree surveillance;

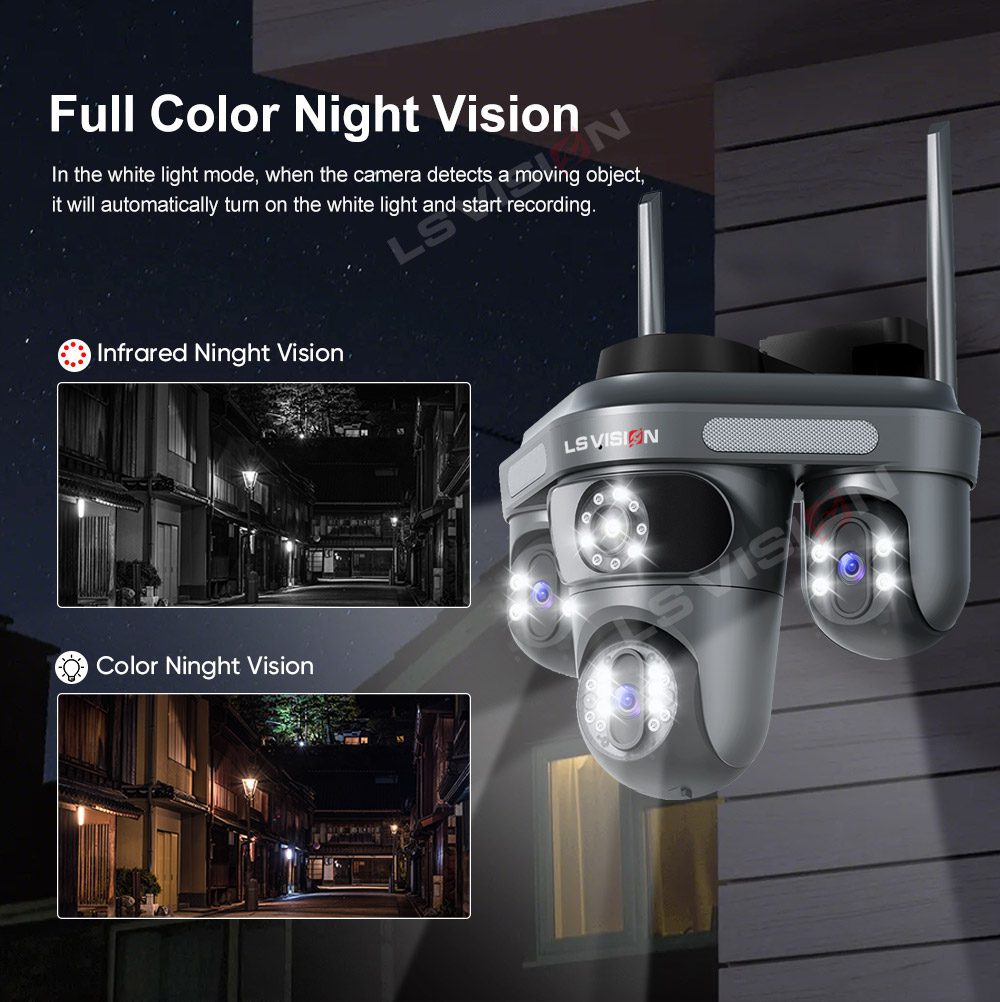

Dual light source design, built-in infrared light + white light, night vision infrared and night vision full color can be set;

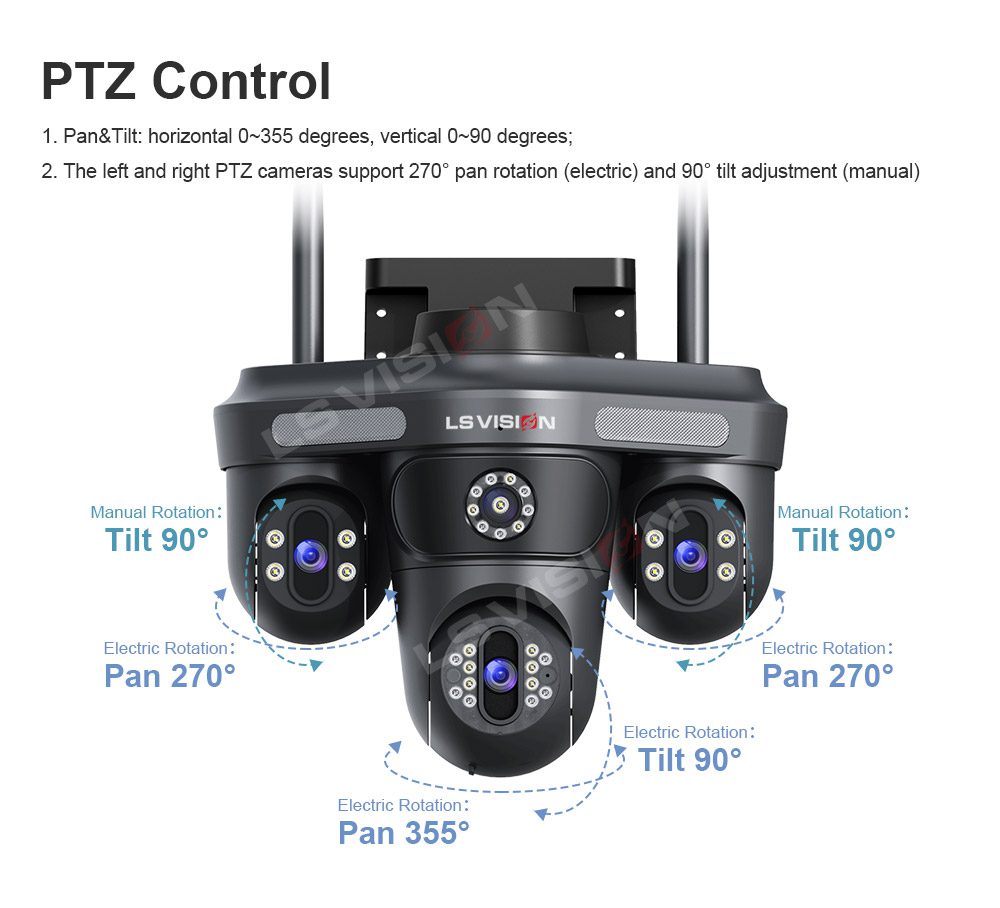

Pan&Tilt: horizontal 0~355 degrees, vertical 0~90 degrees;
The left and right PTZ cameras support 270° pan rotation (electric) and 90° tilt adjustment (manual)

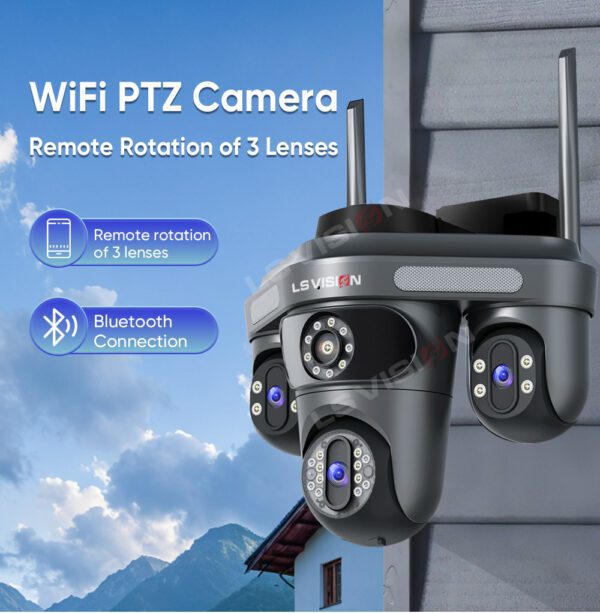

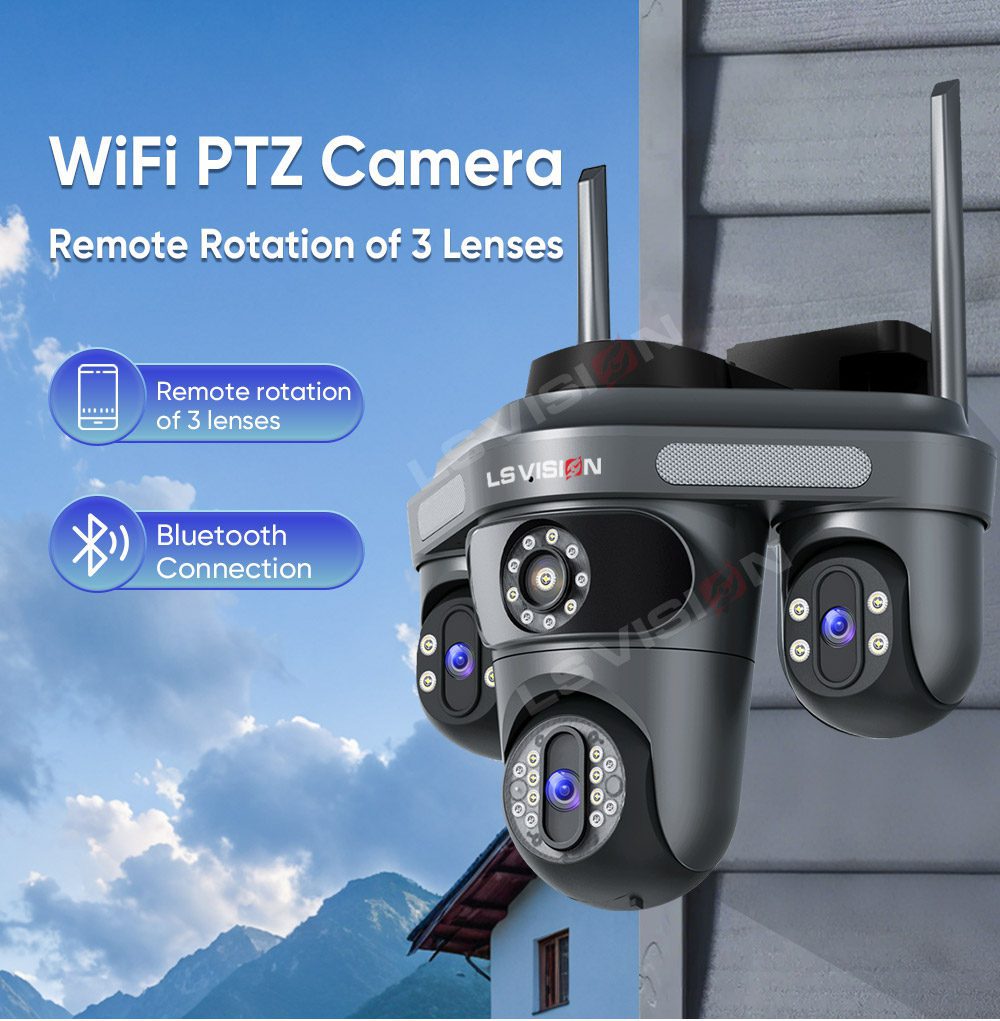

2.4G WIFI + RJ45 network port for Internet access;
Support TF storage and cloud storage;
Two-way voice intercom, three-way video synchronous recording and playback;
Support motion detection and human detection, intelligent alarm;
Support automatic tracking;
Support Android/IOS APP remote management ;
Power supply DC 12V
Optional power supply model: LS-DC12V2A

Model	LS-WL310
Sorts	Type	Parameters
System	Operating system	Linux
	Online visitor	Supports 4 visitors at the same time
	APP	O-KAM Pro
Collection	CPU	Ingenic
	Memory	512Mb
	Lens	4mm+4mm+4mm
	Image sensor	1/2.7″ 1080p progressive scan CMOS sensor
	Minimum illumination	0.5Lux (color mode), 0.1Lux (b&w mode)
	Sensor performance	Support automatic white balance, automatic gain control and automatic backlight compensation
	Night vision	Black and white night vision, full color night vision
	View angle	91°
Video	Resolution	1080P 1920×1080/15FPS/2MP
	Night vision	Black and white night vision, full color night vision
	Compression standard	H.264 main profile/Motion-JPEG/JPEG
	IR control	IR-CUT, soft photosensitive control
	Bit rate	128～4096kbps
	Image adjustment	Brightness, contrast, OSD display
Audio	Input	Built-in -38dB microphone
	Output	Built-in 8Ω1W speaker
	Sampling frequency/bit width	8KHz/16bit
	Compression standard/Bit Rate	G711A
Pan/Tilt	Rotation angle	Main PTZ camera 355°pan rotation (electric) and 90°tilt adjustment (electric) The left and right PTZ cameras 270°pan rotation (electric) and 90° tilt adjustment (manual)
Network	Network interface	10Mbps/100Mbps, adaptive/RJ45
	Network protocol	TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P
	Wireless network	IEEE802.11b/g/n
	Wireless frequency	2.4G
	Wireless security encryption	64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption
Storage	External TF card	Supports T-Flash cards (up to 256GB)
Storage	Cloud storage	Support cloud storage, users can purchase according to their needs.
Alarm	Alarm detection	Motion detection, human detection, human framing, human tracking, siren sound, and area detection
Physical Indicators	Rated voltage	DC12V2A±5%
	Power consumption	Power: 6.72W (0.56A) Maximum power: 10.68W (0.89A)
	Operating condition	Working temperature: -10~55 ℃, working humidity<90%
	Weight	Gross weight: 1.1kg
	Packaging box size	230170255mmmm
	Carton size	695475470mm,12PCS/CARTON, 18.6kg
