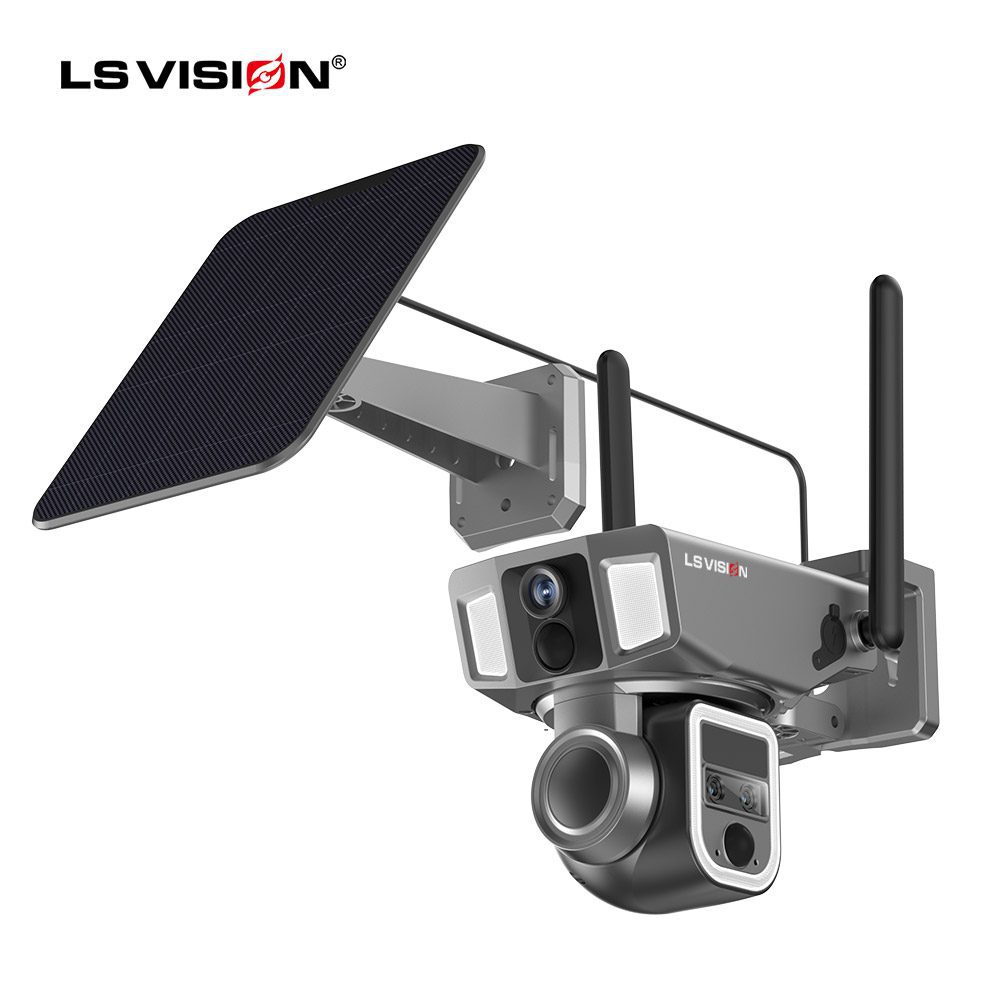

LS VISION LS-MS3A-4G Câmera solar 4G/WiFi externa de 4 MP com lente dupla 2K da série Marvelous
LS VISION, uma empresa de marca global com 15 anos de existência em Shenzhen, China.
The most cutting-edge technology dual network 2 in 1 and lasting update technology-AOV (ALWAYS ON VIDEO)
Mais de 300 clientes de outros países escolhem a frequência 4G mais importante do mundo
Tesla designs look and feel superior in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.
OEM ODM é aceitável para dar suporte a todos os tipos de vendedores eletrônicos
Principais recursos:
1. WiFi Version Camera:
(1). 2K/ 4MP multi-lens wifi solar powered battery floodlight PTZ camera

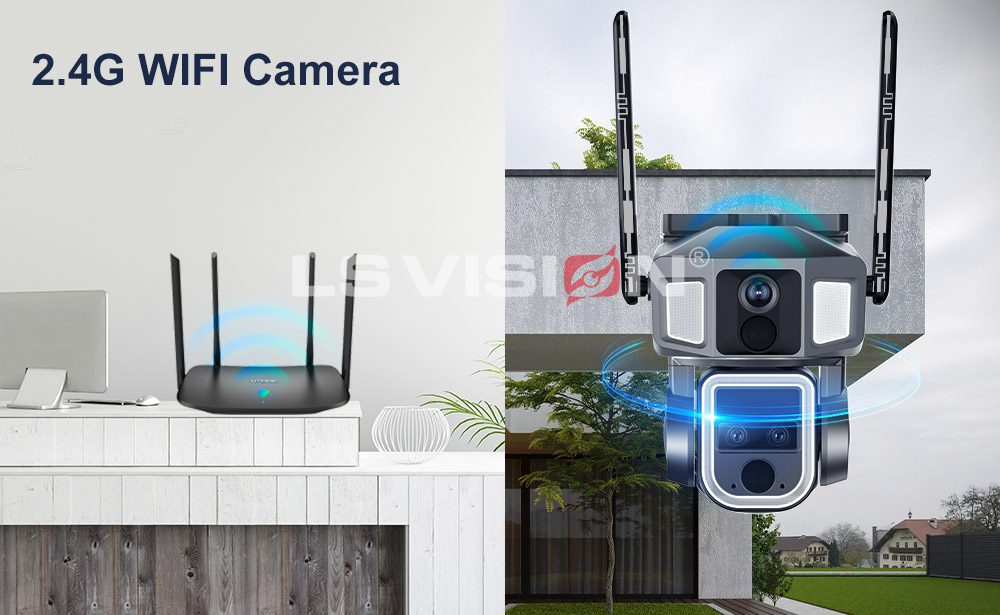

(2). WIFI 2.4GHz , IEEE 802.11 b/g/n;
2. 4G Version Camera:
(1). 2K/ 4MP multi-lens 4G & wifi solar powered battery floodlight PTZ camera

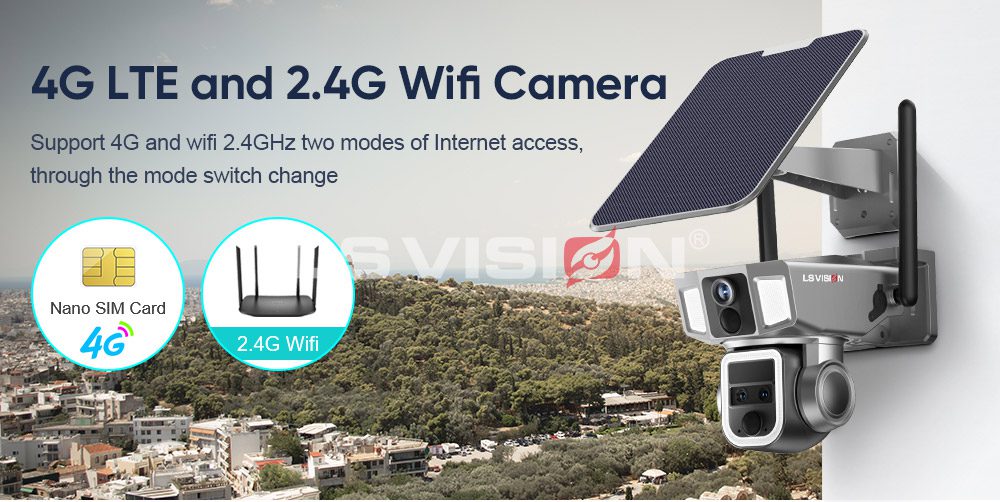

(2). Support 4G and wifi 2.4GHz two modes of Internet access, through the mode switch change

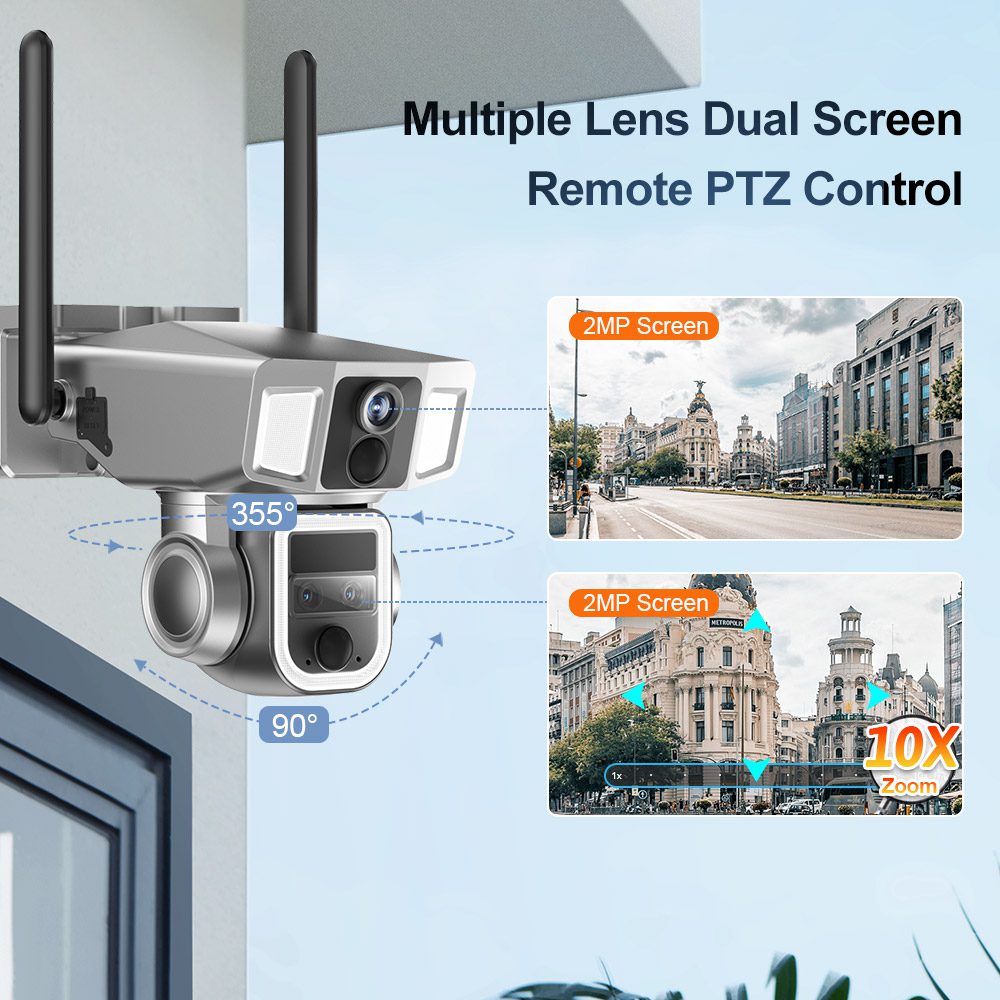

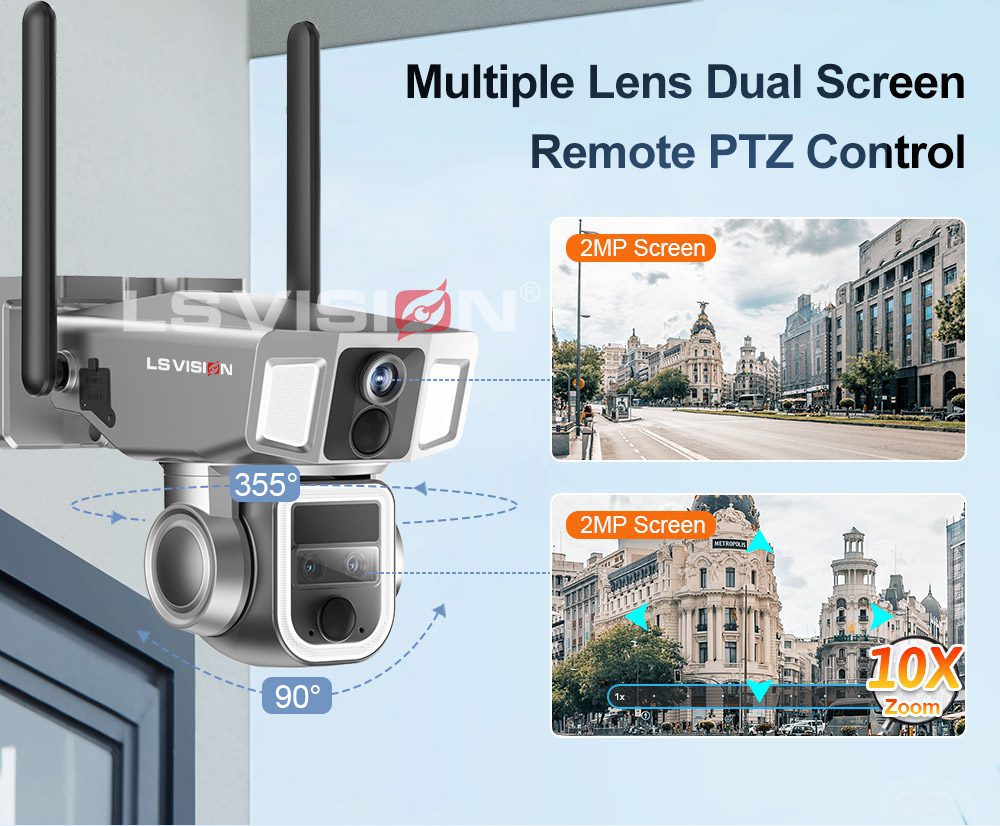

3. Pan&Tilt:Pan 355 degree&Tilt 90 degree

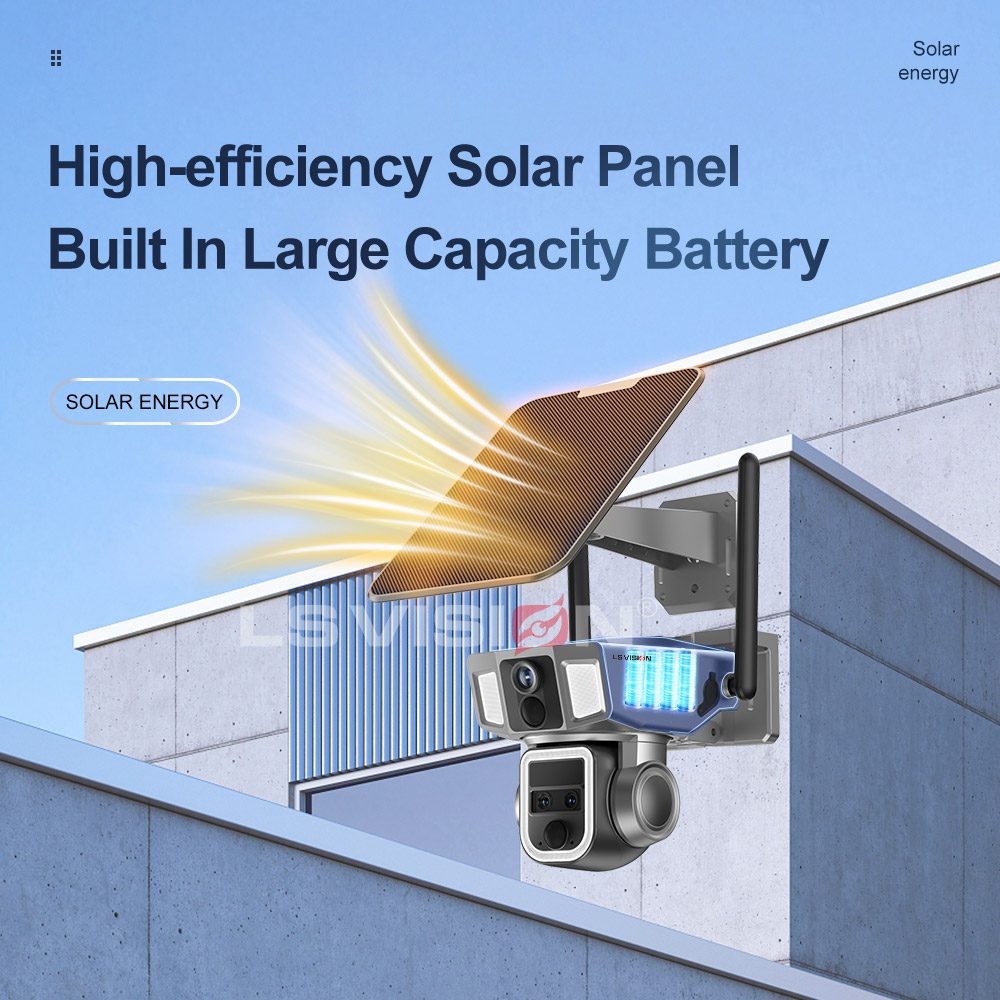

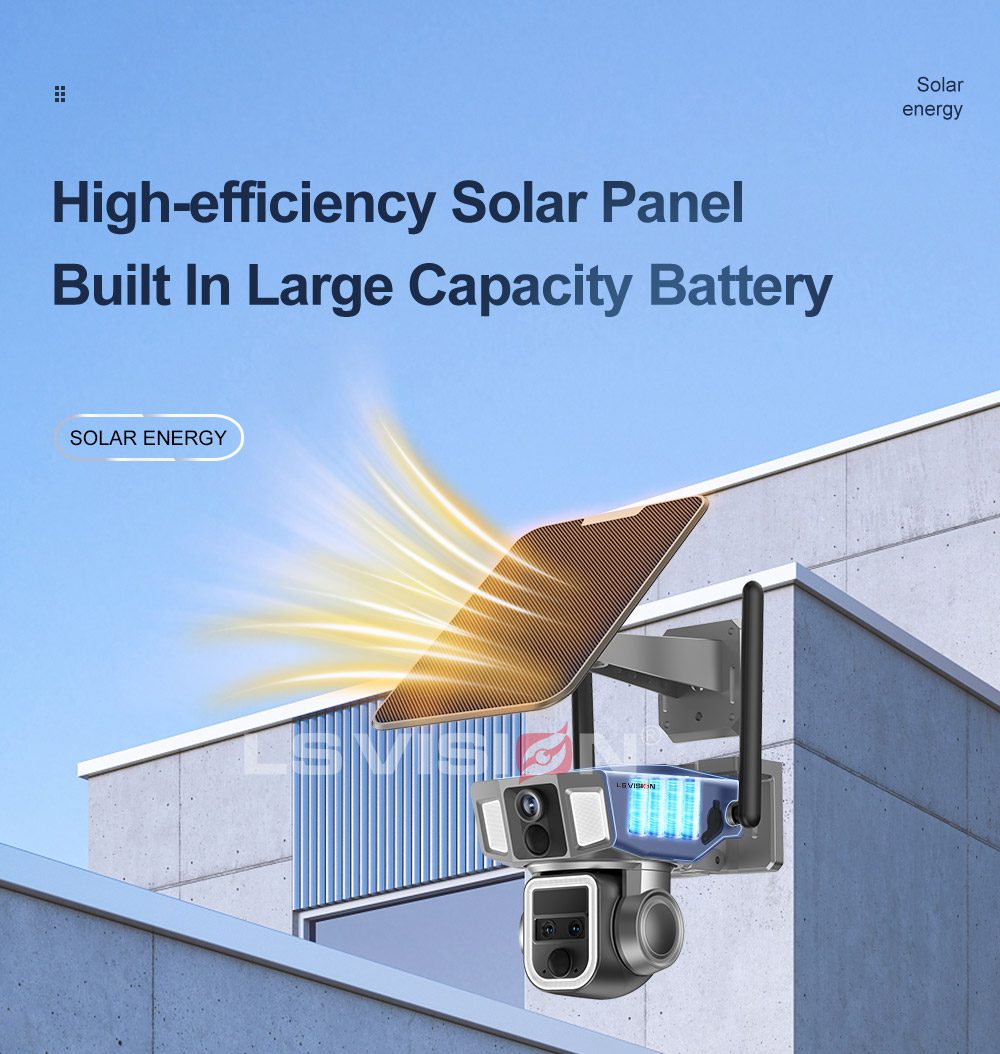

4. 6 watt solar panel with 2m extension cord, built-in 12000mAh batteries
5. Two-way voice intercom
6. Cloud storage and TF card storage maximum 128G(without TF card)
7. Support Android, IOS APP remote viewing/playback (APP: NiView)
8. PIR + humanoid detection wake-up video recording and message push
9. 24-hour recording, 24 hours + trigger recording, trigger recording three working modes

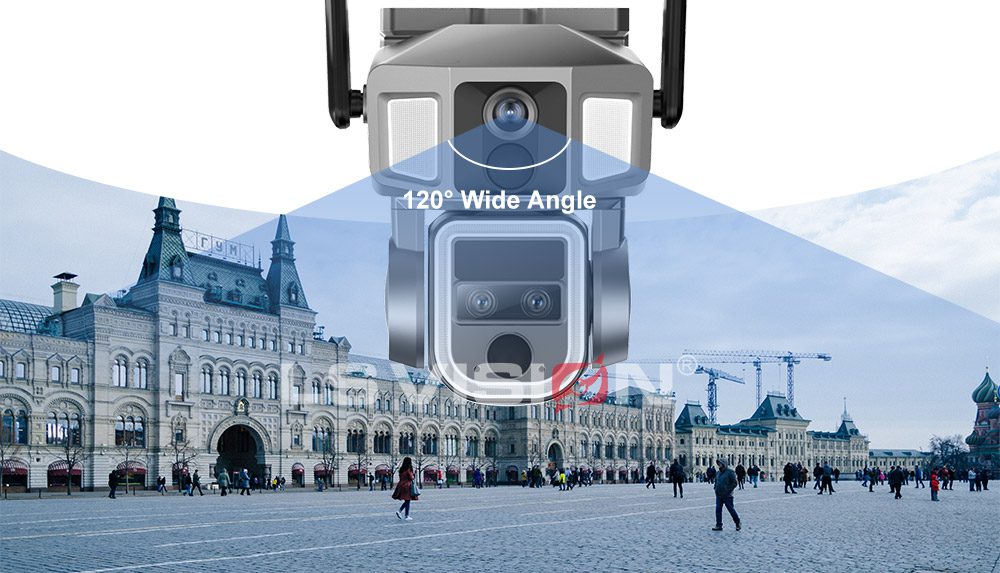

10. 2.8mm wide-angle lens and 6mm+16mm PTZ lens,10X Optical + Digital Hybrid zoom,Seeing clearly from far and near

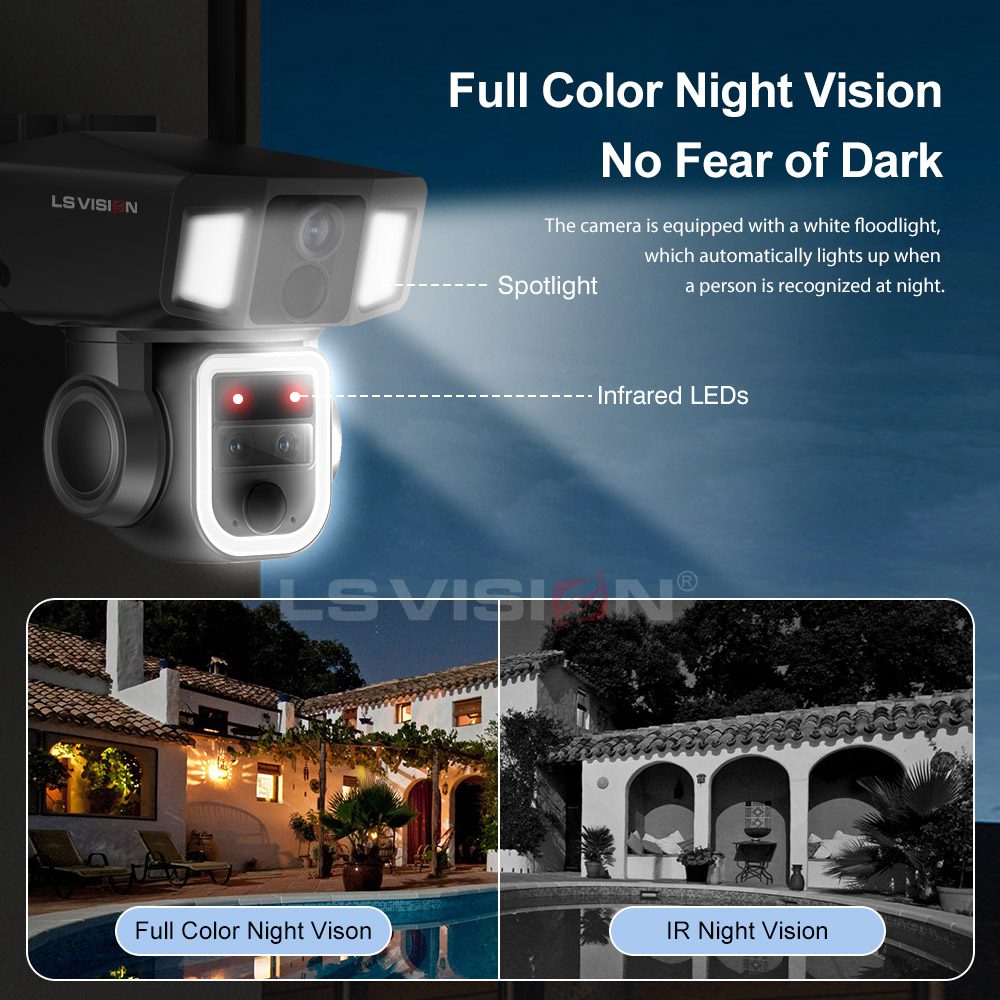

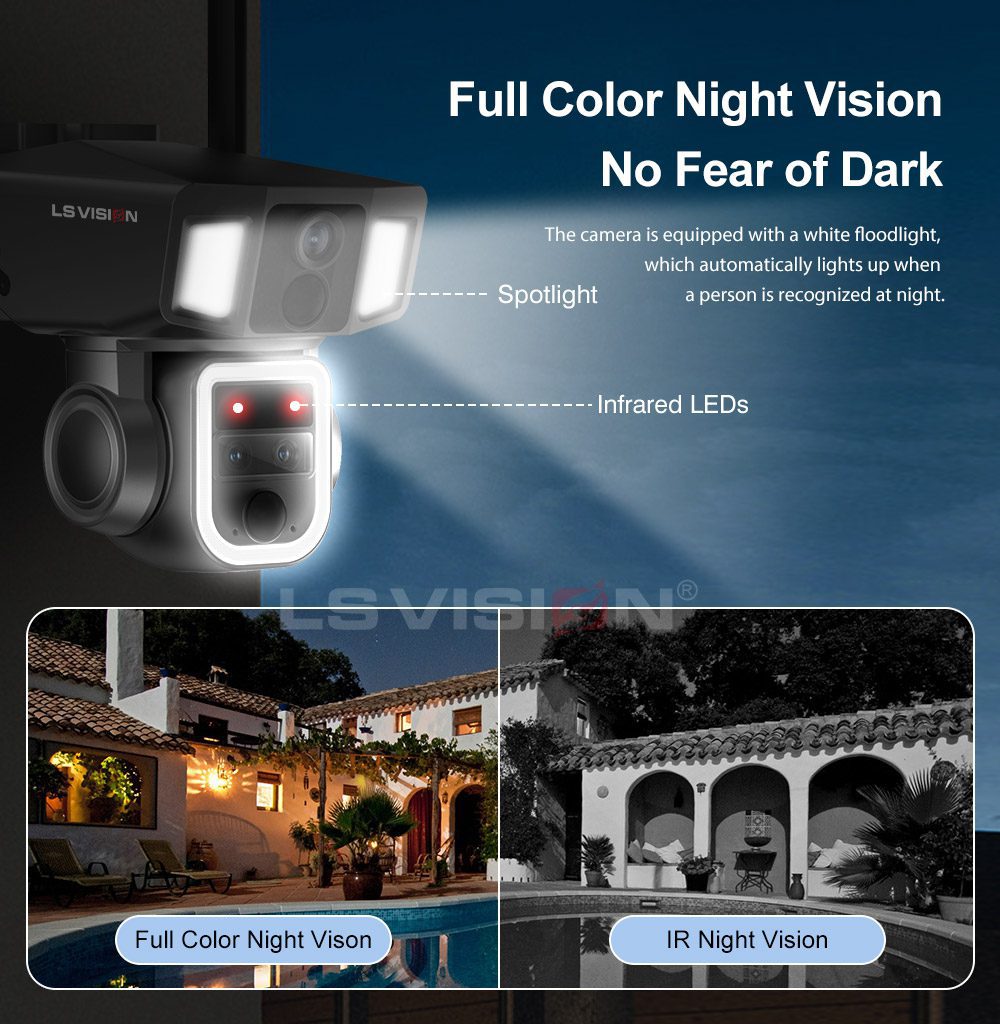

11. Built-in infrared light + white light, night vision full color or infrared mode optional IR distance 25 meters

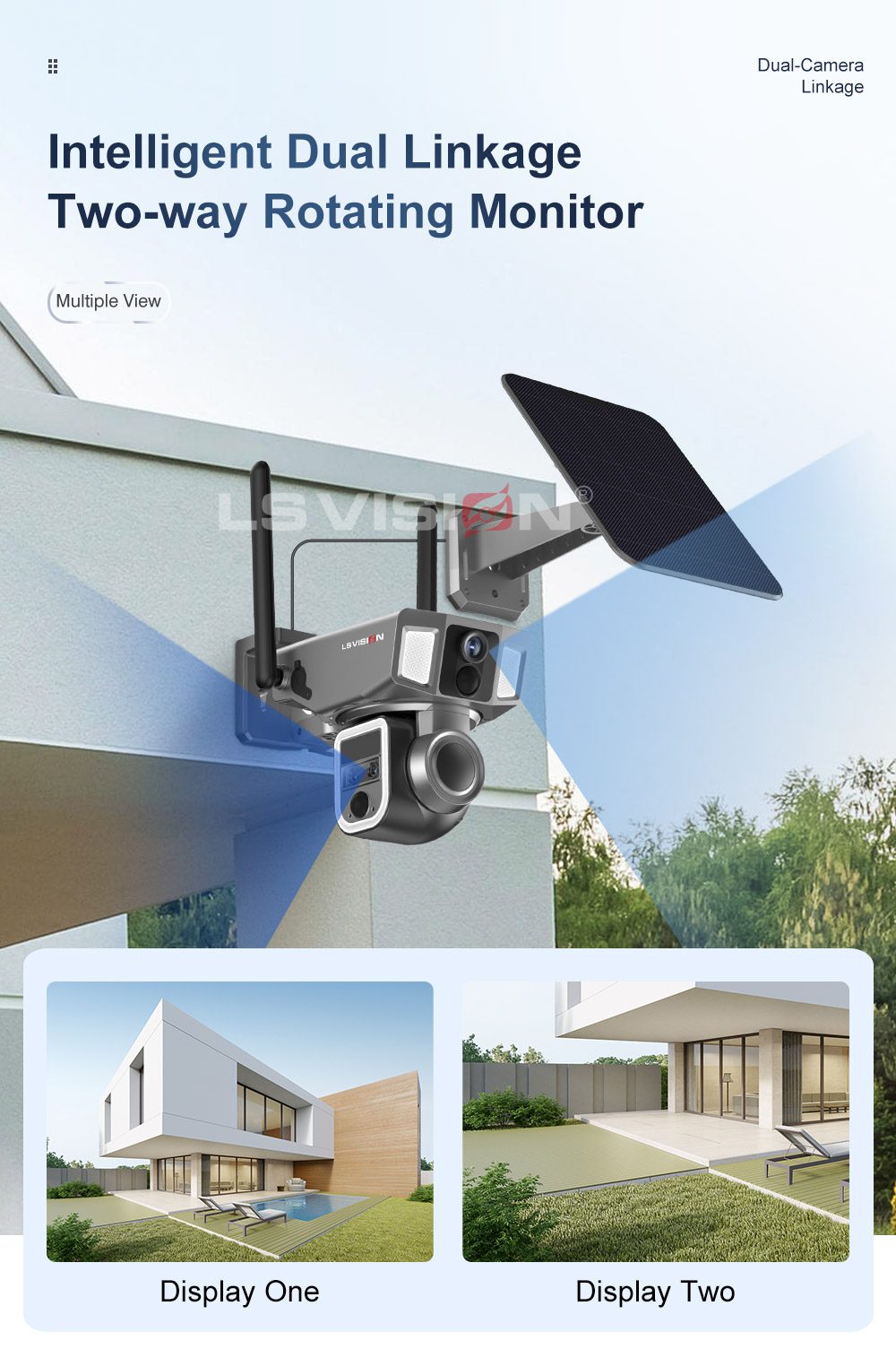

12. Support motion detection, humanoid detection, dual-video linkage positioning, and humanoid automatic tracking

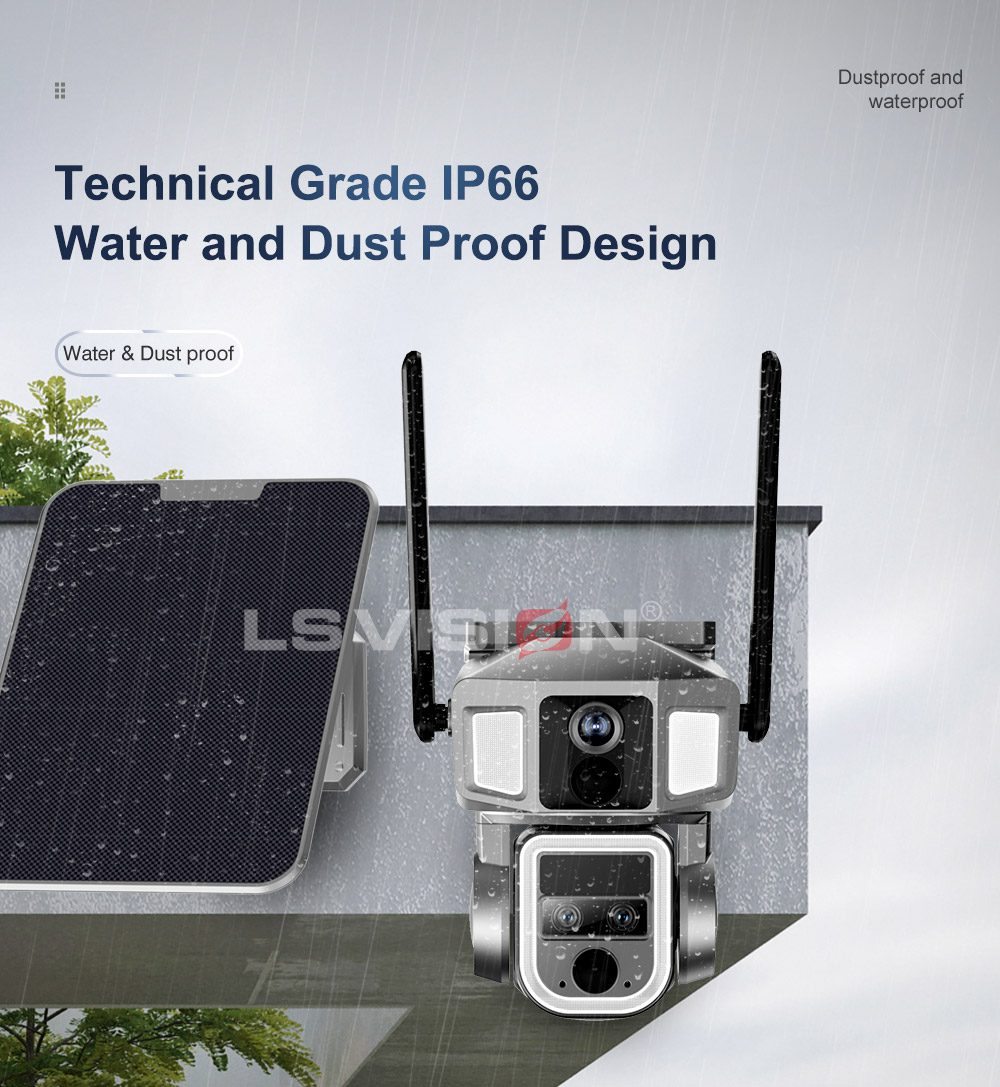

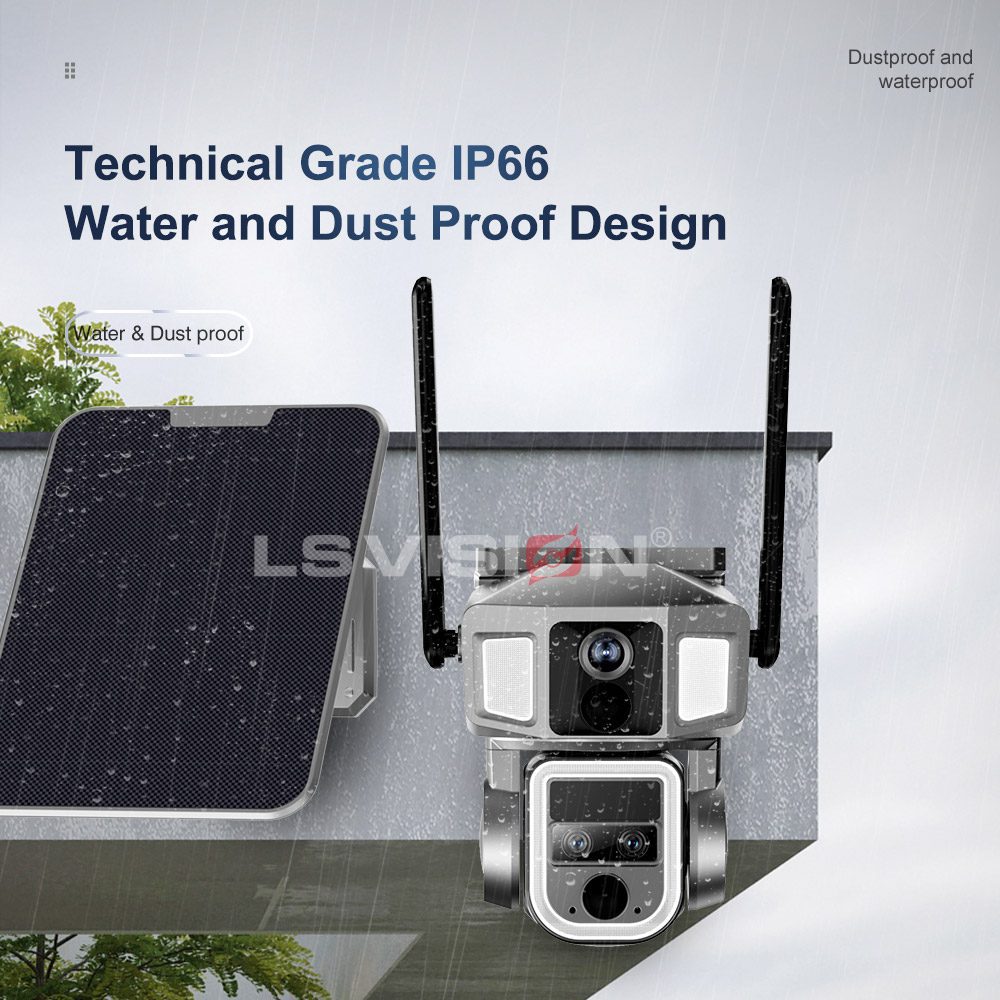

13. Waterproof grade IP66
Let the world see LS VISION Dual lens cameras
If you are looking for the opportunity to cover the missing solutions in your market and to support your customers in some special projects with the latest technology, PLS check LS VISION full series of dual lens and multi-lens WIFI, 4G or dual network 4G and WIFI 2 in 1.
There are so many solar cameras on the market today, from banks to stores to public buildings. They are used to monitor activity and deter crime, but most of them just Single-lens from 2.0MP 3.0MP 4.0MP to 8.0MP, the latest technology from LS VISION will have Dual lens cameras- each lens from 2.0MP to 4.0MP.

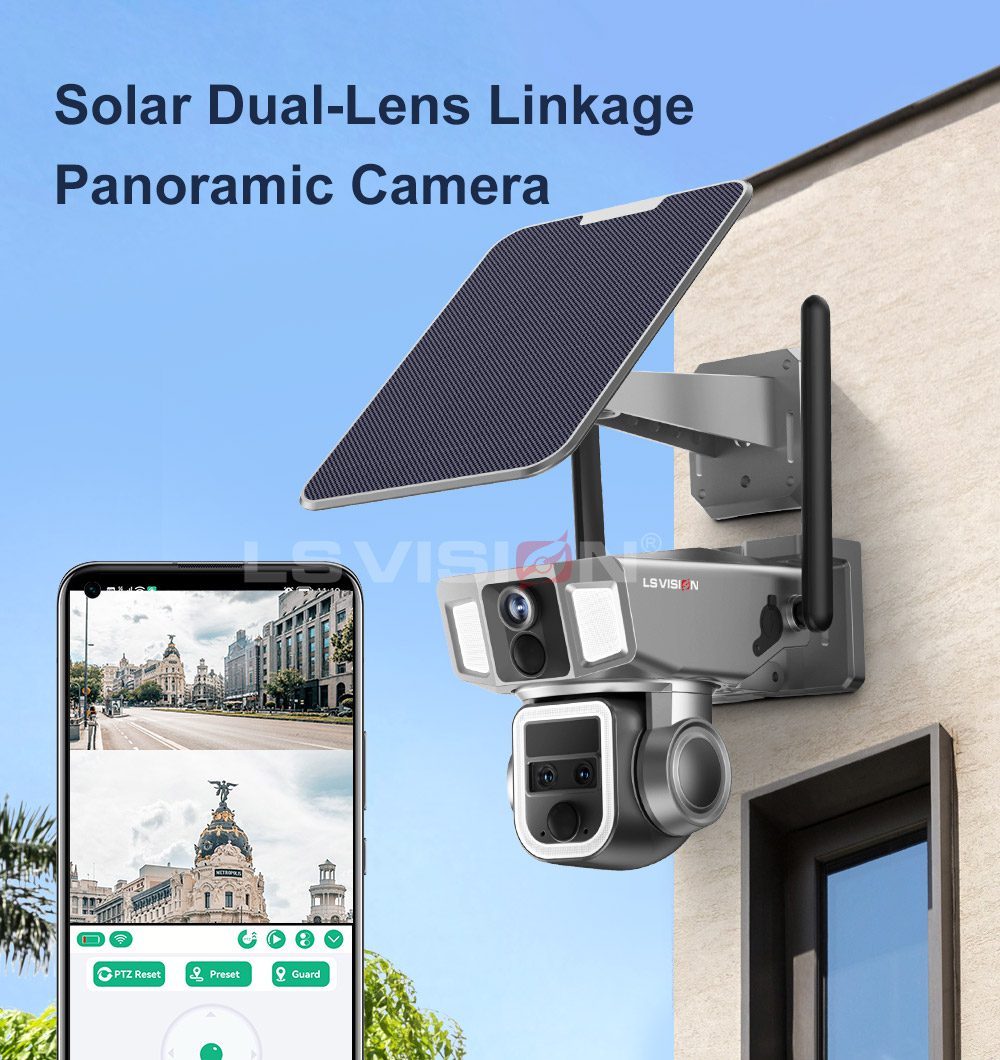

Dual lens cameras often refer to linkage cameras with a fixed lens and PTZ lens. The fixed lens normally has a wide viewing angle of around 135 degrees and PTZ from Pan&Tilt: Pan 355 degrees 90 degrees: that means we can use this system as 2 cameras- spend one camera fee to get 2 cameras
The dual lens is a trend product, below we offer some benefits:
1. Improved Zoom Capabilities: Many dual camera systems combine two different types of lenses, linkage cameras with a fixed lens normally the PTZ is with 4X or 10X so we can view video or focus on the details.
2. Dual lens cameras make things double- one camera monitor 2 directions,
Constant surveillance reduces crime.
3. Dual lens cameras make life more simple- LS VISION can supply 4G or WIFI version, or dual network 4G and WIFI 2 in 1. No matter where have internet or no internet, it will be satiable
4. Dual lens cameras make all things clear and clean-each lens from 2.0MP to 4.0MP, the whole system is 8.0MP/ 4K to let us focus on every detail.
LS VISION started in 2010 adhering to our core values: “Quality, Innovation, and Dedication”, we hope to continue to provide Value Added Services to customers. At present, our R&D team has more than 100 people, the factory area is about 20,000 square meters, and the camera has a daily production capacity of 10,000 units.
obtained the qualifications of “National High-tech Enterprise” and “Shenzhen High-tech Enterprise”. Our products have passed ISO9001-2015 intellectual property certification and German TUV certification. We are members of the Shenzhen Intelligent Security Association too. Moreover, We have our software copyrights of “design patents” and “intelligent analysis, face recognition, 4G products, etc.” with full solar-powered and 4G series products, especially dual-lens cameras and WIFI multi-lens cameras. We strongly believe these can cover the missing solutions in your market, do not hesitate to contact us!
Modelo nº. | LS-MS3A-10X-4G | |
Geral | Processador principal | Ingenic-T40 |
Sistema de operação do APP | Android, IOS | |
Imagem Senor | 3PCS CMOS Sensor | |
Compressão | H.264+/H.265 | |
Resolução | 2MP+2MP | |
Conexão com a Internet | Wireless mode
|
4G/WIFI |
4G version | EAU | |
Alarme | Modo de detecção | PIR + Humanoid detection |
Distância de detecção | 0~12M | |
Detectar ângulo | 95° | |
Modo de alarme | push message | |
PTZ | Ângulo PTZ | Horizontal 355 ° Vertica 100° |
Velocidade | Horizontal 55°/S Vertical 40°/S | |
Visão noturna | Visão noturna totalmente colorida | 0.00001 Lux |
LED IR | infrared LED 15M IR distance | |
LED de luz branca | white light LED 15M distance | |
Áudio | Alto-falante embutido (entrada) | 3W |
Microfone embutido (saída) | Distância de monitoramento de voz 20M | |
Lentes | Upper Lens/
Visual angle |
2.8mm |
Lower Lens/
Visual angle |
6mm+16mm | |
Armazenamento | Armazenamento local | Cartão TF Máximo 128G |
Potência | Modo de fonte de alimentação | Painel solar + baterias embutidas |
Material do painel | silício monocristalino | |
Energia solar | 9W | |
Capacidade da bateria | 12000MA batteries | |
Consumo de energia operacional | 4W | |
Consumo em espera | 0.003W | |
Outros | Ambiente de trabalho | Interno/externo |
Temperatura de operação | -20°~+60° | |
Umidade | 0%~90%RH | |
Pacote | N.W. | 1.75kg |
Tamanho da caixa de presente | 260*245*180mm | |
Quantidade na caixa | 10pcs | |
G.W. | 18.5kg | |
Tamanho da caixa | 570*510*470mm |
