LS VISION LS-MS2 4G/WIFI Dual Lens 180° Ultra Wide View Solar Battery Security Camera

Features:

1. 4K/8MP WIFI panoramic solar powered battery camera;

2. Dual lens 180° ultra wide Angle monitoring;

3. WIFI 2.4GHz, IEEE 802.11 b/g/n or Built-in 4G module, different modules in different countries

4. 6-watt solar panel with 2m extension cord, built-in 18000mAh batteries, solar panels support integrated installation and separate installation

5. Two-way voice intercom

6. Cloud storage and TF card storage maximum 128G(without TF card)

7. Support Android, IOS APP remote viewing/playback (APP: NiView)

8. PIR + humanoid detection wake-up video recording and message push

9. 24-hour recording, 24 hours + trigger recording, trigger recording three working modes

10. Dual light source design, night vision full-color distance of 20 meters, night vision infrared distance of 40 meters

11.2pcs 2.8mm lenses spliced to super wide angle viewing, 4x digital zoom, and dual channel preview to achieve a panoramic and detailed view.

12. Support humanoid detection, humanoid automatic tracking,

13. Waterproof grade IP66

FAQ

Q: Do I need to buy an extra battery?
A: No need. An 18000mAh battery is included in the video surveillance camera and can not be removed.

Q: If the home is powered off, can the camera still operate normally?
A: Yes, because your surveillance camera uses a battery to work, and a 4G camera does not need a Wi-Fi network.

Q: What App does this camera use?
A: Niview app, you can download the APP by scanning the QR code in the user manual.

Q: What’s the difference between a 4G camera and a WIFI camera?
A: 4G camera only supports 4g sim card connection, can not support WIFI connection. WIFI camera only supports 2.4Gz WIFI connection

Q: Why can’t blue lights on when you try the 4G connection?
A: Please contact the seller to check the sim card band frequency. And we will have the solution for you.

**Please check if there have PIN password on your 3G 4G SIM card.

Q: What should I do when I get the solar camera?
A: Open the power on button, and charge the battery camera for about 10 hours.

Q: How many days would the battery stand?
A: Normally 365 days, because this CCTV camera has a built-in 20000mAh battery and the solar panel would provide non-stop power for it.

Note:1. The WIFI camera only can connect and work with WIFI and the 4G Camera only can connect and work with a 4G sim card.
2. This solar camera does not support Onvif and can not work with a PC, NVR, or DVR.



What is this dual-lens camera design principle?



LS VISION MS2 is a solar-powered, low-power dual-lens wide-angle camera with a 180-degree viewing angle. Its design principle is to capture the left and right views through two mirrors, and then seamlessly stitch them together through image processing algorithms to ultimately form a 180-degree wide-angle monitoring.

Compared with ordinary solar-powered, low-power single-lens cameras, it provides a more comprehensive and wider field of view (180 degrees), allowing users to observe more visual content and enhance safety through all-round monitoring of the surrounding environment.

This dual lens camera with 4G or wifi for choose, wifi version satiable someplace be covered with full wifi to make the cameras work stable; the 4G version is suitable for no wifi no internet, need to plug in a 4G SIM card to supply hot spot to remote monitor.

Which scenarios are suitable for these 4G wifi cameras?

This Dual lens 4G wifi camera is equipped with splicing technology used to seamlessly combine two 4.0MP + 4.0MP single images together, ultimately presenting a 180-degree wide-angle effect, which is suitable for application scenarios with a wide viewing angle, such as squares, streets, courtyards, playgrounds, and other large-scale scene monitoring. At the same time, this camera is equipped with 10X optical zoom technology, which can focus on small scene details while achieving large-scale scene monitoring.

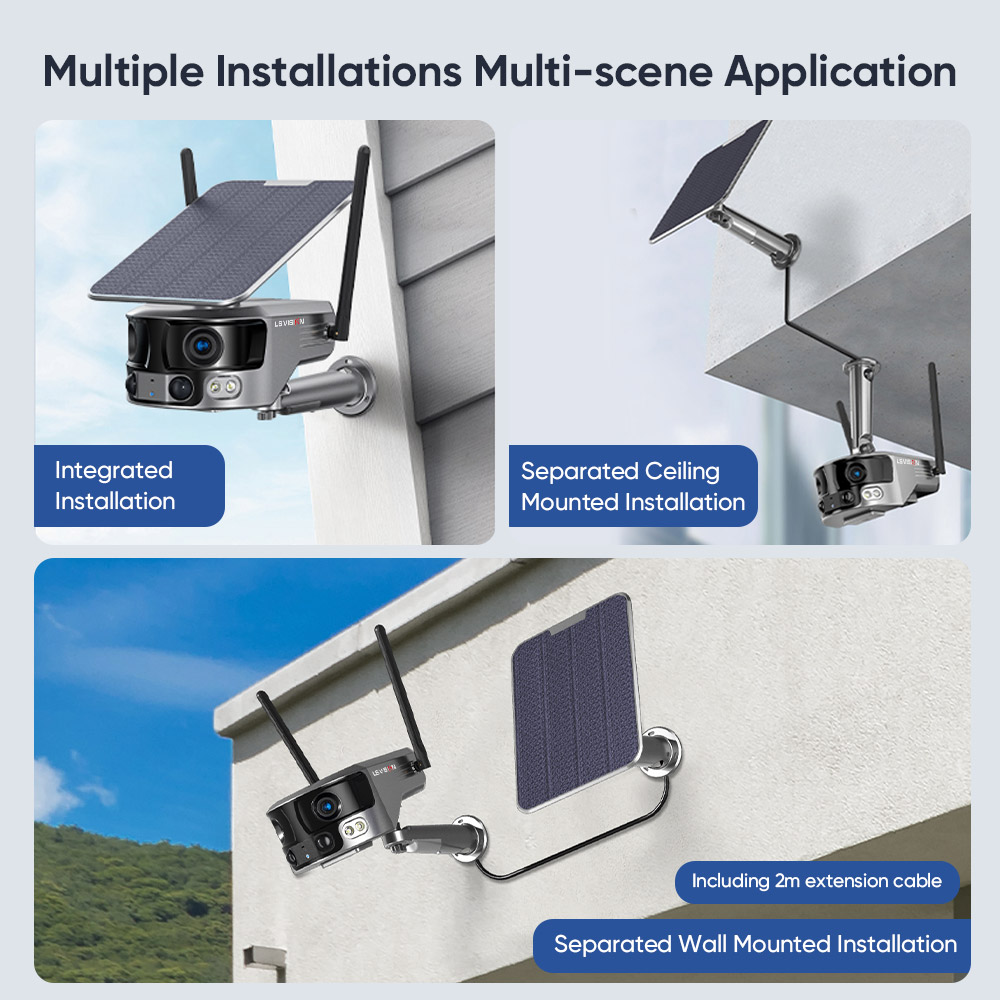

How to install this dual-lens wifi camera?

This 4G wifi low-power camera has two installation methods:
1. Split installation – The solar panel and the camera body will have a 3M extension cable. After fixing the camera, install the solar panel in a place with direct sunlight, keeping the sunlight at a 45° installation angle to ensure sufficient lighting resources; the extension cable is standard 3M, and 5M can also be selected, but it is also necessary to consider that too long will cause power loss.
2. Integrated installation – Integrated installation is more demanding in the camera installation environment. Please choose an installation scenario that is consistent with your actual needs.

FAQs about this dual lens 4G wifi camera?

Q: Does it support 4G and wifi 2 in 1?
A: Nope, 4G or wifi version for option.

Q: Does this 4G wifi camera support PC CMS?
A: NO, only support Mobile app monitor. The app’s name is: review, app supports wireless device addition, with no upper limit.
The review app supports the simultaneous monitoring of eight devices

Q: How long time this 4G wifi camera work once the 9W solar panel is fully charged?
A: 3 months- this dual lens wifi camera called low power camera, it does not support 24/7 365 day recording, but motion detection recording! Almost every time it is in asleep while it detects a human in 8-12M, it starts to record. According to our LS VISION quality inspection practice or customer feedback, it is expected to be used for about 3 months.

Q： Does this 4G wifi camera support 24/7 recording？
A: NO. LS VISION S40 with 20W solar panel cameras support

Daytime and Night vision of dual lens 4G wifi cameras

About LS VISION

LS VISION is a research-driven and manufacturer dual-lens wifi camera company established in 2010, specializing in the development and production of high-end outdoor solar-powered cameras, 4G wifi cameras, dual-lens cameras, and dual network 2 in 1 cameras. Our industry-leading technology and commitment to quality have positioned us as a trusted provider of efficient and reliable surveillance solutions. With a customer-centric approach, we aim to continuously innovate and meet the evolving needs of our clients. Thank you for choosing LS VISION for your surveillance needs.
