LS VISION LS-WL661-50X – 6MP Dual Lens NVR Security Camera System with ONVIF, Solar Ready

With over 15 years of expertise, LS VISION is a trusted manufacturer of high-quality NVR security camera systems.

The dual-lens wired CCTV camera system can be optionally equipped with solar panels for eco-friendly operation.

Experience the best of LS VISION with our premier ONVIF camera, equipped with two-way audio functionality.

Empowering dealers and e-commerce partners with tailored OEM and ODM services to meet your unique needs.

重さ	1.4 kg
サイズ	19.5 × 17 × 26 cm

Key Features:

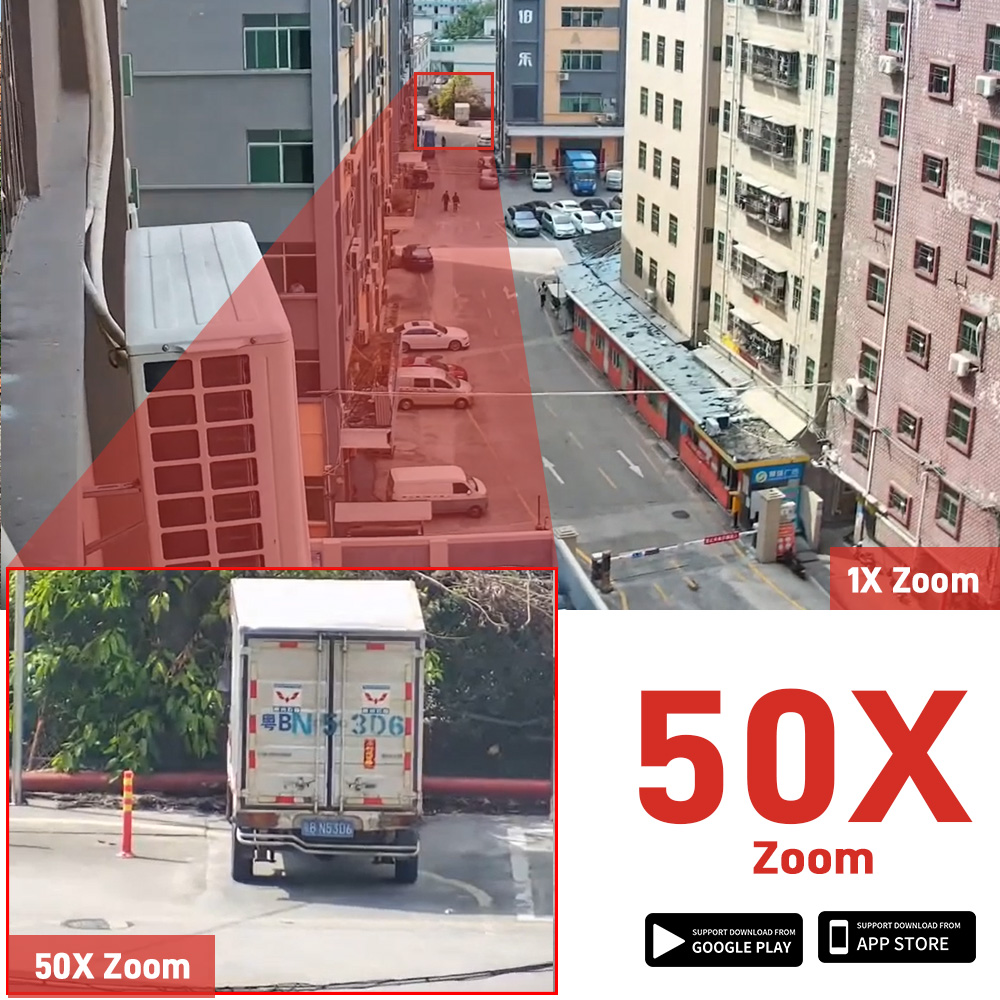

6 inch 6MP HD 50X zoom PTZ camera;

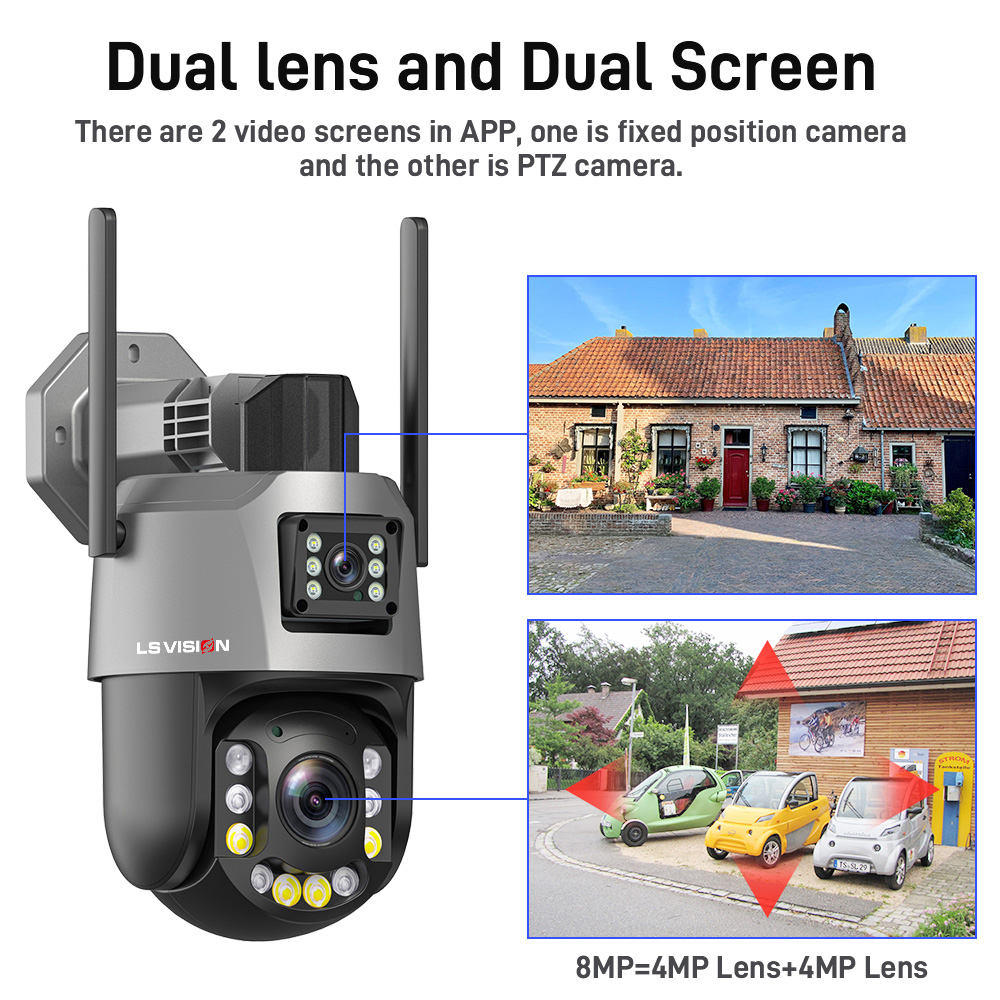

Dual-lens dual-screen, ultra-wide-angle + 50X zoom PTZ to achieve clear monitoring from far and near;
Dual light source design, built-in infrared light + white light, night vision infrared and night vision full color can be set, 2pcs laser light ,night vision infrared 120 meters;
Pan&Tilt: horizontal 0~355 degrees, vertical 0~90 degrees;
2.4G WIFI + RJ45 network port for Internet access; optional European/US version 4G(the 4G version does not support RJ45 network ports)
Support TF storage and cloud storage (free one month cloud storage);
Two-way voice intercom, two-way video synchronous recording and playback
Support humanoid detection, motion detection, intelligent sound and light alarm；
Support ONVIF protocol and access NVR( 4G version does not support );
Supports Bluetooth quick network configuration；
Supports PC client preview（VMS）;
Support Connects to Amazon Alexa ;
Support Android/IOS APP remote management
power supply DC 12V.

モデル	LS-WL661-50X
一般	Minimum illuminance	5Lux @(F1.4,AGC ON) ,0 Lux with IR；
	Shutter	Shutter adaptation
	レンズ	3.6mm+4.7-94mm
	PTZ	Horizontal 0 ° – 355 °, vertical 0 ° – 100 °
	Day night conversion mode	Automatic, ICR infrared filter
	Infrared irradiation distance	30m (depending on the environment)
	Digital noise reduction	2D / 3D digital noise reduction
	Wide dynamic range	Digital wide dynamic
	Video compression rate	Rate adaptation
	Audio compression standard	G.711a
	Audio compression rate	Rate adaptation
	Audio operating mode	Simplex bidirectional
	Audio and video cloud storage	Two synchronous storage and synchronous look back
	Audio and video local storage	Micro SD, two-way synchronous storage, synchronous look back
	Real-time Preview	Two channels, synchronous preview, support two-way video linkage
画像	Image size	HD:6MP SD:640×360
	Frame rate	15 frames (day) / 12 frames (night)
	Image settings	Mirror / Flip
	Backlight compensation	support
Network function	Intelligent alarm	humanoid detection/motion detection
	One click configuration	Code scanning addition, hotspot AP configuration, manual addition
	Interface protocol	Cloud private protocol
	General function	Dual code stream, image, password protection
インターフェース	Storage interface	Micro SD card (up to 128G) or cloud storage
	Power interface	Φ 5.5 round head power interface
	Reset interface	Reset the slot key resets the slot
	Wired network port	Support RJ45 network port (10 / 100M adaptive)
Wireless parameters	Wireless standard	802.11b/g/n
	Radio frequency	2.4 GHz
	Channel bandwidth	Support 20MHz
Cloud services	Cloud services	support
	APP	ICSee (download from App Store)
	クラウドストレージ	Customize the service as required
General specifications	Operating temperature and humidity	-10℃~50℃，10%~90（RH）
	電源	DC12V±10%
	Power waste	12W Max without night vision
	Color box	195X170X260mm, 1.4kg
	PCS/CTN	8 PCS/CTN: 400×350×530mm, 13kg
